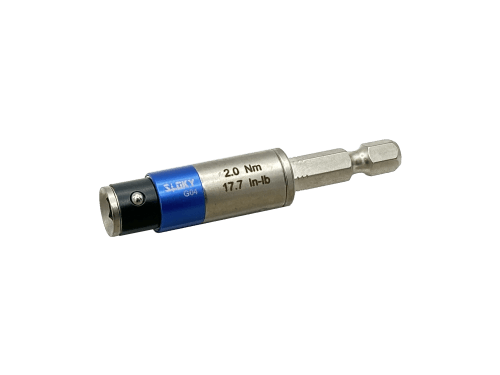

Description:
- Three (3) pieces in a pack of packaged plastic box.
- One male end of 1/4” hex connection for handles, and the other side of the female 1/4” hex connection for the bits.
- Life cycle: Complies with ISO 6789 standards and has passed 5000 tests, maintaining a ±10% accuracy tolerance.
- Color-coded and magnetized connection for quick, visual selection.
- US patented: US Patent No. US8549963.
Specification:
- Material: Carbon steel
- Hardness: HRC 43°-48°
- Surface treatment: Electroless nickel
- Unit conversion: 1 Nm= 8.85 In-Lbs
| S | Φd | L | P |
| 6.35 mm (1/4″) | 10 mm | 32 mm | 10 mm |
| part no. | Torque |
| STS-ADT-CS-01 | 0.9 In-Lbs (0.1 Nm) |
| STS-ADT-CS-02 | 1.8 In-Lbs (0.2 Nm) |
| STS-ADT-CS-03 | 2.7 In-Lbs (0.3 Nm) |
| STS-ADT-CS-04 | 3.5 In-Lbs (0.4 Nm) |
| STS-ADT-CS-05 | 4.4 In-Lbs (0.5 Nm) |
| STS-ADT-CS-06 | 5.3 In-Lbs (0.6 Nm) |
| STS-ADT-CS-07 | 6.2 In-Lbs (0.7 Nm) |
