Description:
- One (1) pieces packaged in a zipped plastic bag.
- Quick change design for multiple applications.
- Speed limits below 250 r.p.m.
- Further tighten manually with a slight force to reach the required torque.
- Shorten tightening job for long screws or multiple screws with identical torque controls.
- Torque Accuracy : ±10%
Specification:
- Material: Carbon steel
- Hardness: HRC 43°-48°
- Surface treatment: Electroless nickel
- Unit conversion: 1 Nm=8.85 In-Lbs
| S | Φd | L | P |
| DIN 3126 1/4″ Hex | 12 mm | 62.7 mm | 25 mm |
| Part No. | Torque |

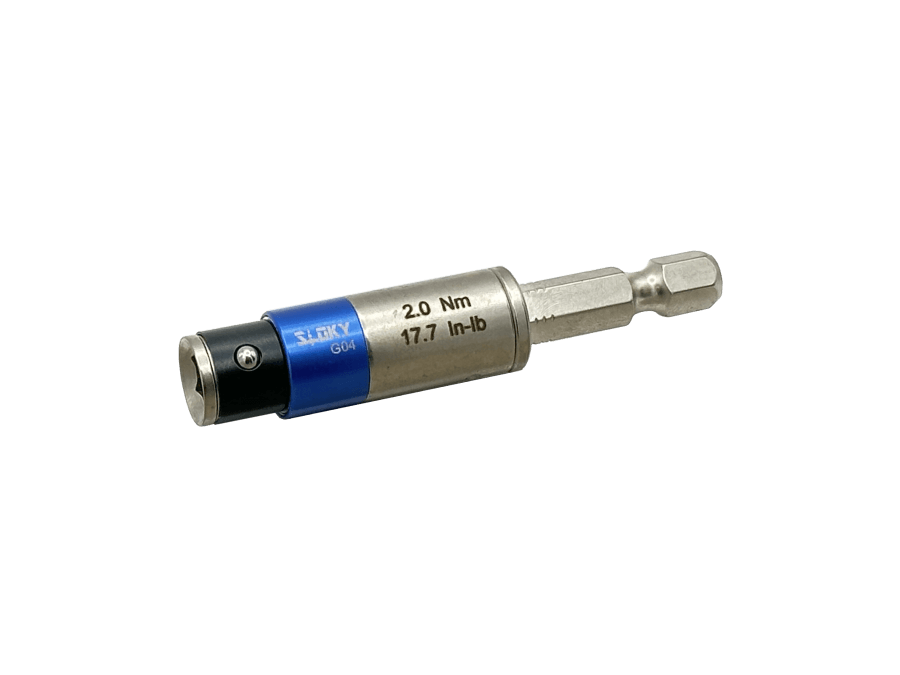

| STS-ADT-CP-2.0 | 17.7 In-Lbs (2.0 Nm) |
| STS-ADT-CP-3.0 | 26.6 In-Lbs (3.0 Nm) |

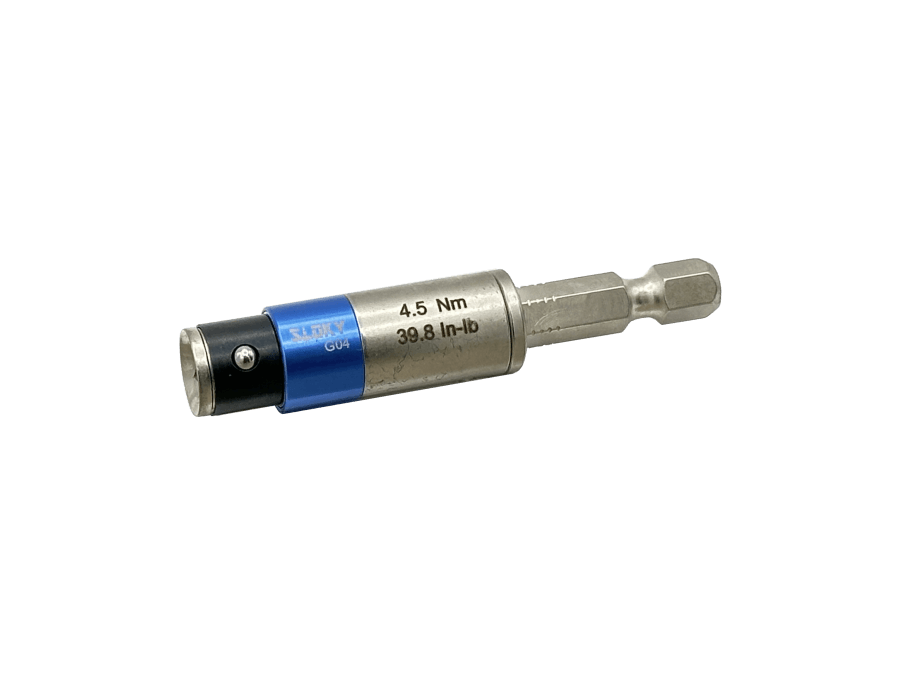

| STS-ADT-CP-4.5 | 39.8 In-Lbs (4.5 Nm) |
| STS-ADT-CP-5.0 | 44.3 In-Lbs (5.0 Nm) |
